Molybdenum machining and semi-finished products

Molybdenum processing according to drawing - CNC production and molybdenum semi-finished products.

From prototype to series.

As a material, molybdenum has become indispensable in many applications.

Its excellent properties make it an all-rounder among refractory metals.

Molybdenum features a very high melting point, high thermal conductivity, and low thermal expansion that is matched to semiconductor materials. It is therefore ideally suited as a carrier material in power electronics to quickly dissipate heat.

In addition to pure molybdenum, we also offer exclusive molybdenum alloys according to customer requirements.

By adding alloys, we influence the physical, mechanical and chemical properties as well as the workability and the recrystallization behavior.

We would be happy to advise you on the possibilities of molybdenum alloys and their various advantages.

Common molybdenum alloys are:

- TZM (titanium zirconium molybdenum)

- ML ( Molybdenum Lanthanum Oxide )

- MY ( Molybdenum Yttrium Oxide / Y2O3 )

- MoRe ( Molybdenum Rhenium )

- MoW ( molybdenum tungsten )

- MoCu (molybdenum copper)

- MoZrO2 (molybdenum zirconium oxide)

- MoNb ( molybdenum niobium )

- MoTa (molybdenum tantalum)

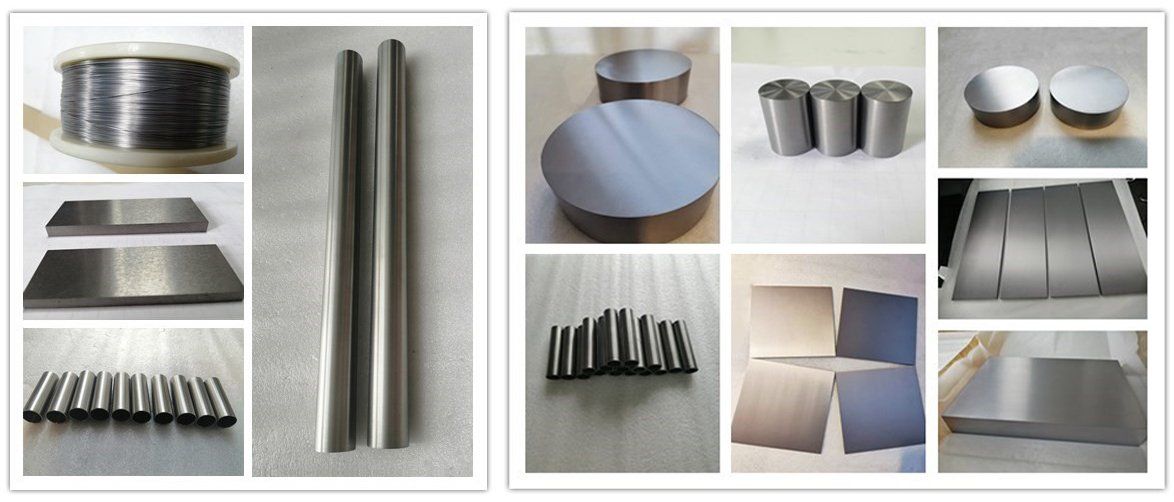

We offer you semi-finished products made of molybdenum and molybdenum alloys and manufacture precision components according to drawings. For this we use the latest technology such as wire EDM, laser cutting, CNC 5-axis milling and turning. A frequently used process in the processing of molybdenum is "spinning", in which molybdenum sheet metal is made to rotate on a type of lathe, heated and deformed in a rotating manner. The end products are rotationally symmetrical parts such as crucibles or tubes with customer-specific shoulders.

We manufacture molybdenum semi-finished products in special shapes and dimensions according to customer requirements.

We have rods, rods, plates, sheet metal, foil and wire in the usual dimensions in stock and can deliver them at short notice. We are happy to produce discs and electrodes according to drawings.

Benefit from our many years of experience with molybdenum and buy from the experts.

We look forward to your inquiry

Molybdenum processing according to drawings, from prototypes from a quantity of 1 to the series order directly from the experts.

Machining molybdenum presents some challenges, especially when you want to manufacture precision components with tight tolerances. However, with the right tools and know-how from the manufacturer, almost any component can be made from molybdenum.

When forming molybdenum, the brittle-ductile temperature limit must be observed. Above the temperature limit, the molybdenum is in the ductile state, below it is in a brittle state. The temperature limit is quite a bit lower than that of tungsten. Thus, the forming possibilities of molybdenum are greater than those of tungsten.

In addition to forming molybdenum (often using the spinning process), molybdenum can also be turned and milled. Certain alloying elements simplify machining and improve physical and mechanical properties.

We would be happy to support you in your next project involving the machining of molybdenum.

The following manufacturing options are available to us.

- milling

- Turn

- Erode

- Ribbons

- Laser cutting

- polishing

- Deep drawing

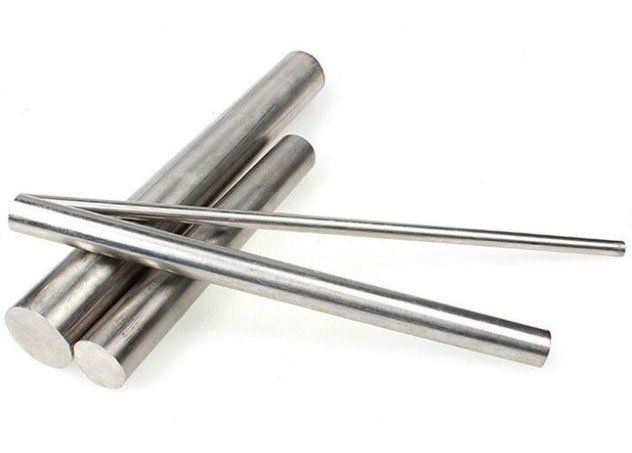

Molybdenum rods, rods and electrodes in special dimensions and surface finishes according to customer requirements.

Buy molybdenum bars and rods in standard dimensions from stock or have us produce your individual dimensions promptly. The surface of molybdenum rods is an important criterion for many applications.

We are able to produce precision rods with surface finishes in the micrometer range.

Do you need further processing such as threads, shoulders, milling? With us you get everything from one source. Buy molybdenum products from the experts.

We offer molybdenum rods with a purity of 99.98% and in all common alloys.

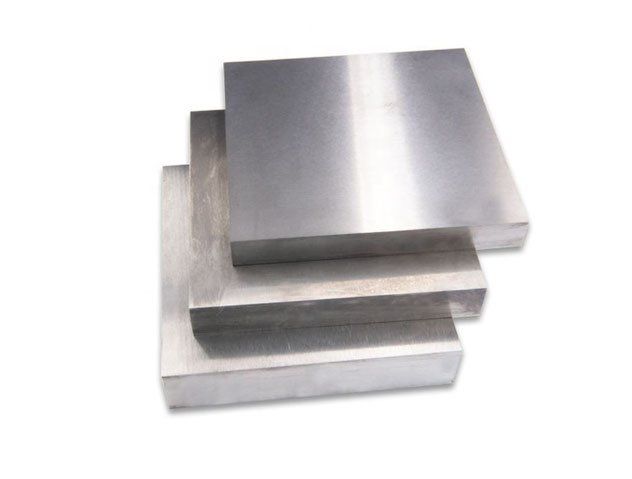

Buy molybdenum plates and squares in special dimensions with surface finishes and tolerances according to customer requirements.

Buy molybdenum plates and squares in standard dimensions from stock or let us produce your individual dimensions promptly.

Ground tungsten plates with narrow tolerances are required for many applications. We also respond to your individual wishes for small quantities.

Do you need molybdenum processing such as threads, shoulders, milling? With us you get everything from one source. Buy molybdenum plates from the experts.

We offer molybdenum plates with a purity of 99.98% and in all common alloys.

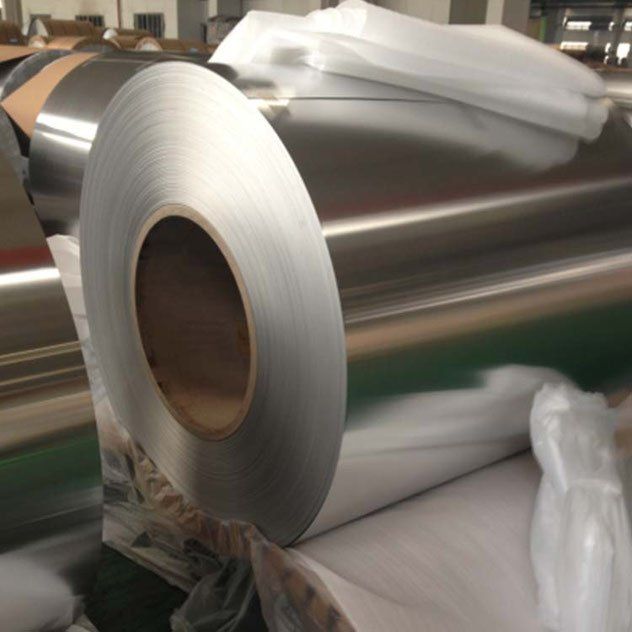

Molybdenum foil and sheet metal in special widths and the tightest tolerances.

Buy precision molybdenum foil manufactured to your specifications or coiled directly from stock or already cut into foil sheets.

You can get molybdenum foils and sheet metal semi-finished products from us as well as components according to drawings. We can, for example, laser cut your Mo foil or deep-draw it.

So you get everything from a single source, buy molybdenum foil from the experts and benefit from our many years of experience with refractory metals.

We offer molybdenum foils and sheets with a purity of 99.98% and in all common alloys such as TZM or ML.

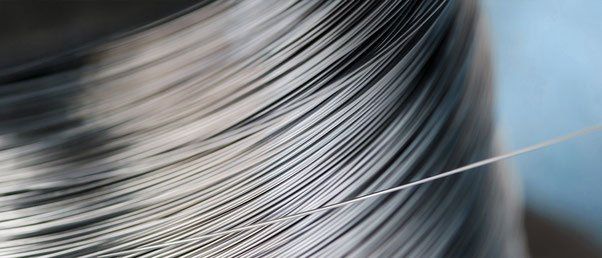

Molybdenum wire with standard or precision diameters according to customer requirements.

Buy molybdenum wire in standard dimensions from stock or have the wire manufactured to your desired precision tolerances.

We supply molybdenum wire with different surface qualities. After the wire has been manufactured, the surface is still oxidized black. The smallest tolerances, which are only in the micrometer range, can be achieved without removing the oxide.

However, the oxide can also be removed mechanically or chemically. We have various options available to prepare the surface according to your wishes.

We offer molybdenum wire with a purity of 99.98% and in all common alloys such as TZM or ML.

Buy molybdenum products from experts and benefit from our many years of experience.
