Titanium rod, wire, foil, plates / machining titanium

HME-Tech GmbH is your partner for everything to do with titanium processing and titanium semi-finished products such as wire, rods and foil.

What you should know about titanium and titanium alloys:

Titanium has excellent corrosion and erosion resistance while maintaining high strength and low density. In addition, titanium is extremely mechanically and thermally resilient. Because of these properties, titanium is an important material in the aerospace, mechanical engineering and automotive industries. Due to its good body compatibility, the material is also often used for implants, pacemaker housings and surgical instruments. Titanium alloys have tensile strengths between 290 and 1200N/mm2 which is in the range of structural steels (310-690N/mm2) and alloyed steels (1100-1300N/mm2).

With titanium materials, a distinction is made between pure titanium and titanium alloys, which are divided into different grades (Gr) depending on the alloy components.

Our service:

We offer you semi-finished products such as rods, rods, wire, plates, foils from stock and produce special dimensions on customer request. When manufacturing titanium semi-finished products and components, we attach great importance to the quality of our titanium products. If you need semi-finished titanium components according to drawings, you have also come to the right place. We process titanium with the most modern CNC machines in order to achieve the highest level of dimensional accuracy.

Overview of different titanium grades:

With commercially available titanium, a distinction is made between pure titanium and titanium alloys. These can be divided into different degrees. Depending on the grade, the titanium has different physical properties and can be processed differently.

Rein Titan:

Gr1, Gr2, Gr3, Gr4

Titanium alloys:

Gr5 (Ti6Al4V)

Gr6 (Ti5Al2.5Sn)

Gr7 (Ti0.2Pd)

Gr9 (Ti3Al2.5V)

Gr11 (Ti0.2Mo-0.8Ni)

Gr.12 (Ti0.3Mo-0.8Ni)

Gr23 (Ti-6Al-4VELI)

Ti6242 (Ti6Al2Sn4Zr2Mo)

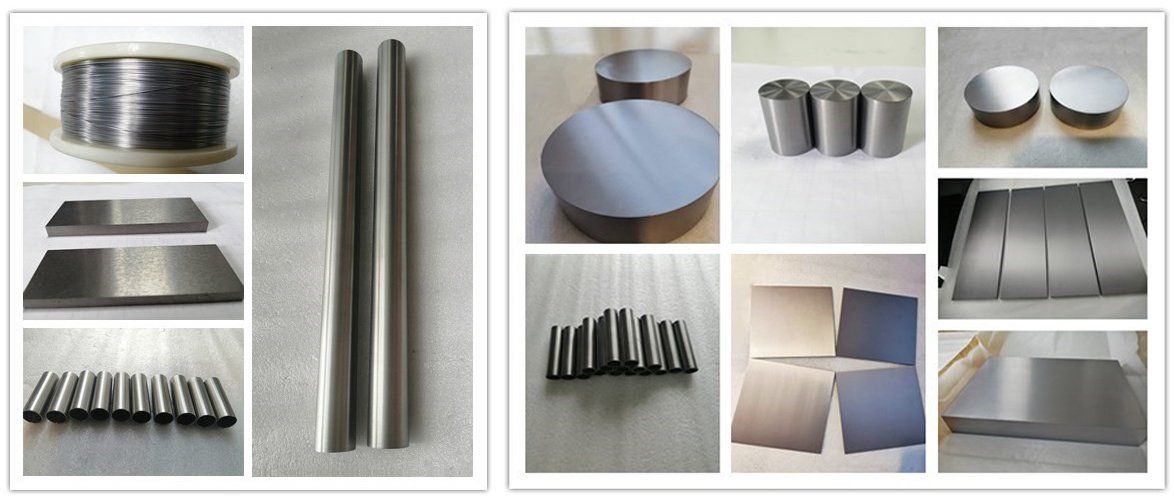

Examples of machined titanium semi-finished products of different grades.

Machining titanium according to drawing:

We supply you with semi-finished products for your in-house production, but we also take over the CNC production of your parts according to drawings. Depending on the alloy composition, the processing of the different titanium grades is very different and requires the necessary knowledge, especially for high-precision components. In addition to machining titanium by turning and milling, we also offer laser machining as a service. With our many years of experience, we are happy to support you.

Send us your drawing as a PDF file and we will get back to you as soon as possible to clarify. In the best case already with an offer.

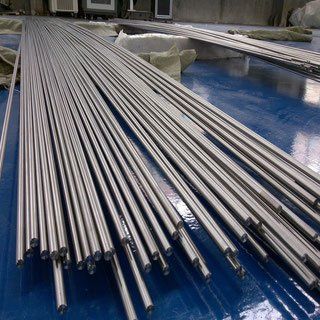

In addition to machining titanium, we also offer semi-finished products such as bars and rods from stock. The rods are used by our customers in their raw state, but they are also often processed further.

Rods and rods are usually available from stock in different dimensions. We also manufacture special dimensions according to customer requirements and ship them worldwide. In addition to different diameters, custom-made products also include precision machining of the surface.

Like our other semi-finished products, rods and rods are available in pure titanium and in all common titanium alloys.



For questions regarding warehousing and custom-made products, please contact us directly.

In addition to the processing of titanium, we also offer semi-finished products such as foil and plates from stock. Foils are used by our customers in their raw state, but they are also often further processed, for example by deep drawing or laser processing. We also offer laser cutting of titanium foil as a service.

Titanium foils and plates are available from stock in various dimensions.

We manufacture special dimensions according to customer requirements and ship them worldwide. In addition to different widths and lengths, custom-made products also include thickness tolerances, which can be maintained down to a few micrometers on customer request.

Like our other semi-finished products, titanium foils and plates are available as pure titanium and in all common titanium alloys.

For questions regarding warehousing and custom-made products, please contact us directly.

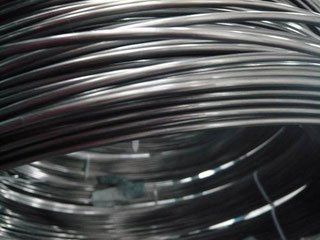

In addition to the processing of titanium, we also offer semi-finished products such as wire from stock on customer request.

Titanium wire is installed by our customers in different areas of application. In addition to medical technology and aerospace, titanium wire is also increasingly being used in classic mechanical and plant engineering.

Titanium wire is available from stock in various dimensions. Precision wire with diameter tolerances of just a few microns can be manufactured to customer requirements. The surface treatment is also carried out on customer request.

Like our other semi-finished products, the wire is available as pure titanium and in all common titanium alloys.

For questions regarding warehousing and custom-made products, please contact us directly.
